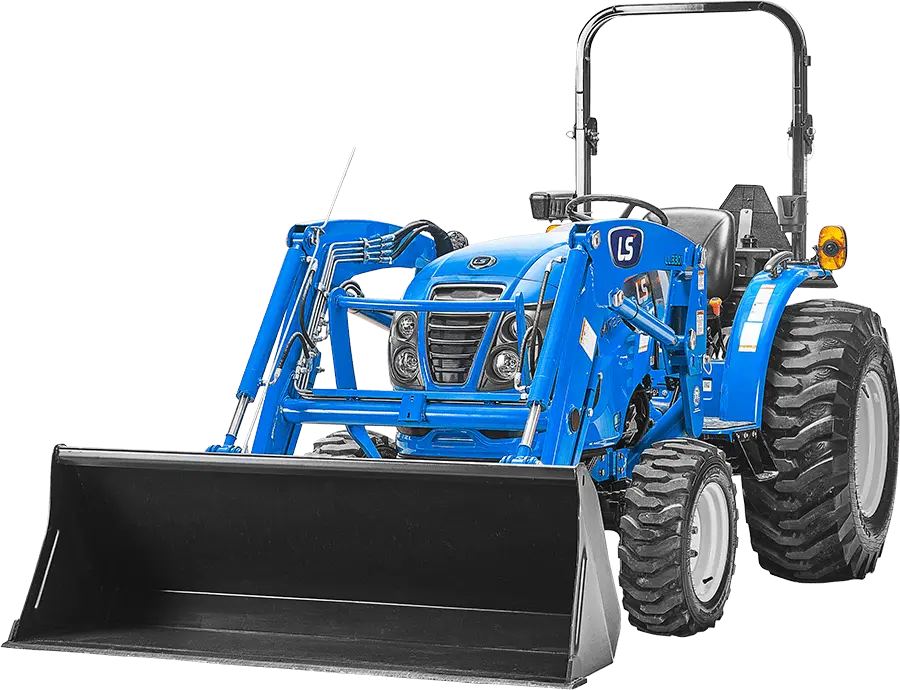

2025 MT242HE - 42.5HP - LS Tractor

2025 MT242HE - 42.5HP - LS Tractor

We didn’t have to improve load lift capacity by up to 22%. And we didn’t have to increase the backhoe’s digging depth by 30%. But we did. And now, after more than a 1000 hours of testing from the scorching heat of Texas to the frigid air of Michigan, the new MT2E models are here.

  • Much improved seat comfortability
  • Factory A/C cab available in a 25HP tractor
  • New hood design (LS Family look), Grill open space plus 20%
  • LED head Lamp
  • 1 Inch large tire size and four different tire options
  • Larger lifting capacity, loader lifting capacity -> New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2(LL3303) 2,506 lbs.
  • Workability, 4-point mount structure as well -> digging depth of 97.2” and bucket digging force of 3,663 lbs.
  • TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
  • E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift (option).

  • Description

    ENGINE

    • Type: 4 Cylinder, Liquid-cooled, Diesel, NA, CRDI
    • Model: YANMAR
    • Engine HP (Gross): 42.5
    • PTO HP: 34.8
    • Rated Speed (RPM): 2,600
    • Displacement (cu. in.): 133.6
    • Fuel Tank Capacity (gal): 10.6
    • Alternator (V-A): 12V-55 Amps

    DRIVE TRAIN

    • Transmission: HST
    • No. of Speeds: 3 Ranges
    • Brakes: Wet, Multi-Disc
    • Steering: Hydrostatic Power Steering

    PTO

    • Type: Independent
    • Rear RPM: 540 (Standard)

    HYDRAULIC SYSTEM

    • Implement pump (gpm): 6.7
    • Steering pump (gpm): 5
    • Total flow (gpm): 11.7
    • Category, 3 pt hitch: CAT 1
    • Hitch Lift capacity (lb): 1,808
    • Control System: Position
    • Remote Valves: Option

    DIMENSION

    • Overall length Frame to Link (in.): 125
    • Wheelbase (in.): 66
    • Overall width with tires (in.): 74
    • Height to top of ROPS(in.): 90

    TIRE SIZE

    • Ag Front/Rear: 7 – 14 / 11.2 – 24
    • IND Front / Rear 27X8.50-15 / 43X16.00-20
    • VT Front / Rear 27X8.50-15 / 43X16.00-20
    • Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20

    WEIGHT

    • Total weight without ballast (lbs).: 3,294

  • Specs

    Availability Brochure
    Style Compact
    Loader Lift Capacity 2,506 lbs.
    Engine HP 42.5 HP
    Hitch Lift 1,808 lbs.
    PTO HP 34.8 HP
